Gun Drilling Machines

Gun Drilling Machines

Product Details:

  • Supply Ability : 50 Set Per Year
20000.00 - 30000.00 USD ($)/Set
X

Price And Quantity

  • 1 Set
  • 20000.00 - 30000.00 USD ($)/Set

Trade Information

  • Qingdao port
  • Paypal, Western Union, Telegraphic Transfer (T/T)
  • 50 Set Per Year
  • 2 Months
  • Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India

Product Description

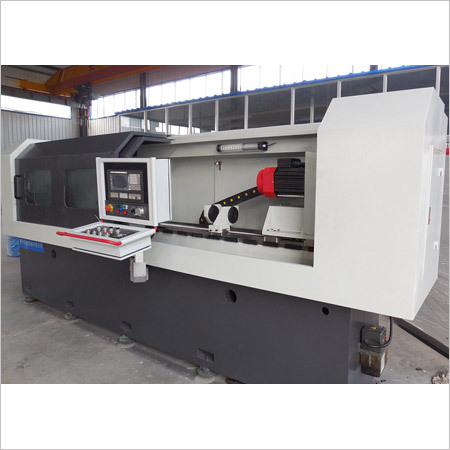

Gun Drilling Machines

Started in the year 2010, we have occupied a strong foothold in the international market by offering a foremost range of Gun Drilling Machine. These machines are suitable for the production of small diameter and deep hole drilling components, shafts & mandrels. We use ultra modern techniques and quality approved materials to manufacture these machines in accordance with industry set norms and standards. Moreover, our clients can avail this Gun Drilling Machine from us at industrial leading prices

Key Features -

  • Noise free operations
  • Robust construction
  • User-friendly design
  • Longer service life

Main Specifications and Features

Specifications Technical data
range of drilling dia. 3-20mm
Max.Drilling depth 500mm/1000mm
head stock spindle speed 380r/min
range of drilling box spindle speed(infinite) 800-7000r/min
feed speed range(Z-axis)(infinite) 10-500mm/min
pressure range of coolant 1-10MPa
flow range of coolant 6-100L/min
rapid speed of feeding carriage 3m/min
torque of feeding motor 7Nm
motor power of drilling bar box 4kW
motor power of headstock 1.5kW
general motor power 20kW(about)
overall dimension(LxWxH) 4000x4050x2050(500mm) 5050x4050x2050(1000mm)
machine weight 6t(500mm) 7t(1000mm)


DEZHOU DRILLSTAR CUTTING TOOL CO., LTD.

* Tips on getting accurate quotes. Please include product name, order quantity, usage, special requests if any in your inquiry.
